FEI Titan G² 60-300 Holo

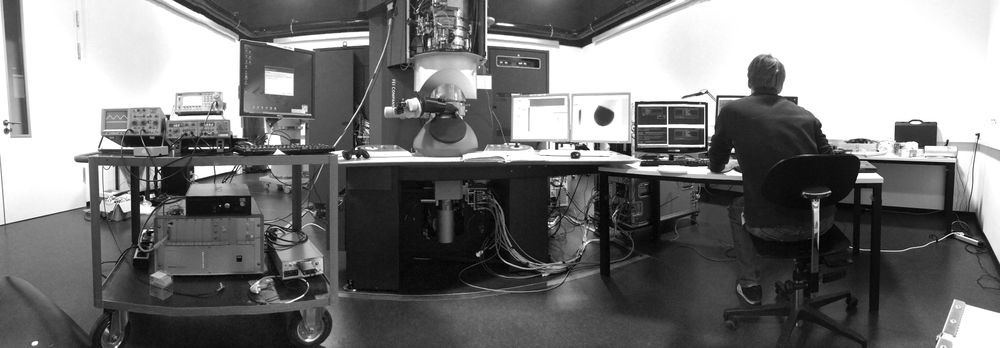

The FEI Titan G² 60-300 Holo is a field emission gun transmission electron microscope designed for electron holography and in situ TEM analyses. The instruments is equipped with a high-brightness electron gun, an objective lens with an ultra wide pole piece gap, an imaging spherical aberration corrector element, a post column energy filter system as well as a system of two electron biprisms. Digital images are to be taken with a Gatan 2k slow scan charged coupled device camera system. Specifications for the instrument operated under optimum conditions are given below.

Microscopists planning to use this instrument should contact Amir Tavabi or Yoshie Murooka.

Users of the FEI Titan G² 60-300 HOLO are kindly asked to quote a tecnical description of the instrument published in the Journal of large-scale research facilities 2 (2016) A44 when referring to the use of this instrument in publications.

Instructions

The operation instructions given below and on the subsequent pages are ment as guidelines and knowledge base. They do not replace the direct introduction to the microscope usage by the instrument officers or your project manager. There are many steps and pitfalls in the operation of this microscope that can seriously harm you or the expensive equipment.

Since the Holo microscope is a very complex machine, please do not edit the instructions below before discussion the changes with the instrument officers.

Microscope operation

Knowledge

Microscope status and issues

Specifications

Microscope performance

Detectors

Gatan K2-IS.
Gatan Tridiem 865 ER image filter (GIF) with fully 2nd and 3rd order and partially 4th order corrected prisms yielding a total system energy resolution of 0.3 eV at 300 kV with a maximum field of view of 17 µm for imaging and 120 mR for diffraction analyses.
Gatan UltraScan 1000P (2k x 2k) charge coupled digital camera.
Fischione HAADF STEM Detector
Delay Line Detector (Surface Concept)

Software

Microscope PC:

Gatan DM 1.93.1362, license 902838297
HoloWorks 5 plugin for DM

Gatan K2 PC:

Gatan GMS 3.30, license 204211001
IS plugin for GMS3
HoloWorks 6 plugin for GMS3
Holder plugin for GMS3
Anaconda Python 3.6 distribution
Hyperspy 1.4
LiberTEM 0.2.dev

Instrument officers

The instrument officers of the Titan Holo are Amir Tavabi and Thibaud Denneulin.

Model and serial number

Model No. FP 5600/31 TITAN G2 60-300

Serial No. 9920503 / D3300

Location

Building: 05.2S
Microscope room: 2005
Operator Phone: +49 2461 61 9274

IT infrastructure

The microscope IT infrastructure involves three PC stations connected together with a support network. The stations include Microscope PC (192.168.0.2), Support PC (192.168.0.1) and K2 PC (192.168.0.5). SMB share of Holo Support PC can be accessed from JuNET using shared IFFW2K account erc_user via 134.94.165.119/DatenHolo
